Lutron LX-1108 Lux Meter – alat ukur instensitas cahaya sd 400.000 Lux
Rp1
ELECTRICAL SPECIFICATION
Measurement Range Resolution Accuracy
Lux 40.00 Lux 0 – 40.00 Lux 0.01 Lux ( 3% rdg + 0.5 % F.S.. )
400.0 Lux 36.0 – 400.0 Lux 0.1 Lux
4,000 Lux 360 – 4,000 Lux 1 Lux
40,000 Lux 3,600 – 40,000 Lux 10 Lux
400,000 Lux 10,000 – 400,000 Lux 100 Lux
Accuracy < 100,000 Lux : ( 3% rdg + 0.5 % )
Foot-candle
( Fc ) 4.000 Fc 0 – 3.720 Fc 0.001 Fc ( 3% rdg + 0.5 % F.S.. )
40.00 Fc 3.35 – 37.20 Fc 0.01 Fc
400.0 Fc 33.5 – 372.0 Fc 0.1 Fc
4,000 Fc 335 – 3,720 Fc 1 Fc
40,000 Fc 930 – 37,200 Fc 10 Fc
< 9,300 Fc : ( 3% rdg + 0.5 % F.S.. ) > 9,300 Fc
Lutron LX-1108, accessories yang termasuk:
* Instruction Manual
* Batere kotak 9 Volt
* sensor Lux
Optional accessories ( tidak termasuk )
* USB-01 USB Cable
* Data acquisition Software SW-U801-WIN
* Hard case CA-06

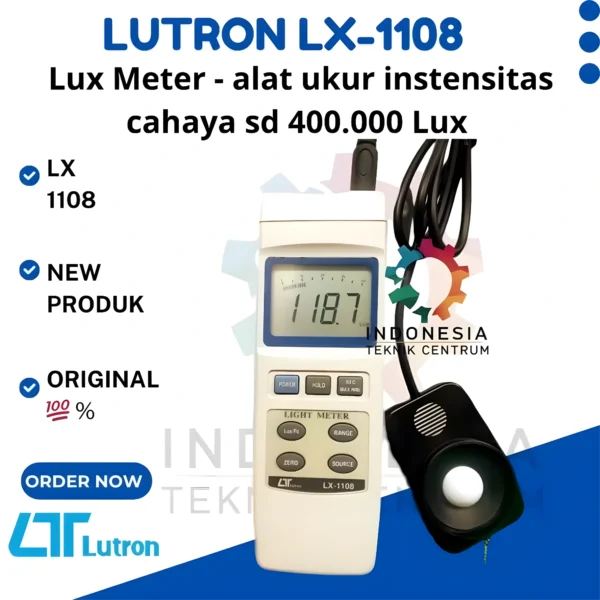

Lutron LX-1108 Digital Lux Meter
Made in Taiwan
Features :
* 5 ranges : 40.00/400.0/4,000/40,000/400,000 Lux.
* Resolution : 0.01 Lux to 100 Lux. /0.01 Ft-cd to 10 Ft-cd.
* Selection of lighting type ( Tungsten, Fluorescent, Sodium or Mercury ).
* Separate Light Sensor allows user to measure the light at an optimumposition.
* Lux & Foot-candle unit selection.
* Large LCD display with bar graph.
* Water resistance front panel
* Zero adjusting button.
* Data hold and Peak hold.
* Memory function with Recall. Auto
* Auto power off or manual power off.
* RS-232 computer data output.
GENERAL SPECIFICATIONS
Display LCD size 52 x 38 mm, 4 digits. with bargraph indicator.
Unit : Lux, Foot-candle ( Ft-cd ).
Lighting Type selection : Tungsten, Fluorescent,Sodium, Mercury lamp.
Zero Adj. External adjustment by pushing button. ( 40.00 Lux range only )
Over and
Over range Indicator :”- – – – “
Under range Indication
Under range Indicator :”- – – – “
Dimension Main instrument : 200 x 68 x 30 mm, Sensor probe :82 x 55 x 7 mm
