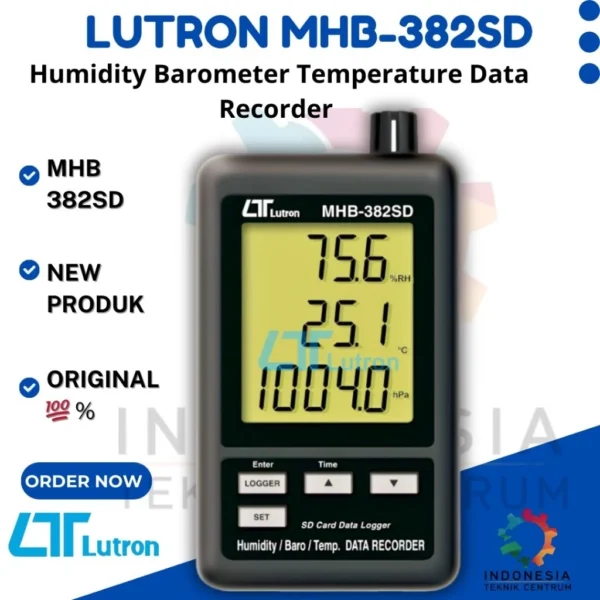

Lutron MHB-382SD Humidity Barometer Temperature Data Recorder

SPECIFICATIONS

HUMIDITY

Range 10 % to 90 % R.H.

Resolution 0.1 % R.H.

Accuracy :

≧ 70% RH : ( 4% reading + 1 % RH)

< 70% RH : 4% RH.

BAROMETER

hPa

Range :

10.0 to 999.9 Res. 0.1 Accuracy ± 2 hPa

1000 to 1100 Res. 0.1 Accuracy ± 3 hPa

mmHg

Range :

7.5 to 825.0 Res.0.1 Accuracy ± 1.5 mmHg

inHg

Range :

0.29 to 32.48 0.01 Rs. Accuracy ± 0.1 inHg

TEMPERATURE

Range : 0 to 50℃ ,32 to 122℉

Resolution: 0.1 degree

Accuracy: – ± 0.8 .℃/ – ± 1.5 .℉

Lutron MHB-382SD, accessories yang termasuk:

* Instruction manual

* Hanging unit ( with sticker )

* Batere AAA (1,5 Volt) x 6 PCs

Optional Accessories : ( Tidak termasuk )

* SD Card max 16 GB

* AC to DC 9V adapter.

* USB cable, USB-01.

* Data Acquisition software, SW-U801-WIN.

Lutron MHB-382SD Humidity/ Barometer/ Temp Monitor

Made in Taiwan

( produk belum termasuk SD Card )

FEATURES

* Monitor with real time data logger, save the measuring

data along the time information ( year, month, date,

hour, minute, second ) into the SD memory card and

can be down load to the Excel, extra software is no

need. user can make the further data or graphic analysis

by themselves.

* Show Humidity, Temperature and Barometer value in the same LCD.

* 0.1 %RH resolution for the humidity reading, 0.1 degree resolution for the Temp. reading.

* Used the precision capacitance type humidity sensor, professional and high accuracy for humidity measurement.

* Professional barometer, unit : hPa, mmHg, inHg.

* SD card capacity : 1 GB to 16 GB.

* Operating temperature : 0 to 50 .℃

* Dimension: 132 x 80 x 32 mm

* Display LCD size : 60 mm x 50 mm

* Show Humidity, Temperature and Barometer value in the same LCD.

* Datalogger 5/10/30/60/120/300/600 seconds or auto

* Update Time of display Approx. 1 second if measuring data is changed

* Battery life If use the new battery ( alkaline type ) and sampling time set to 60 seconds, the battery life will be > one month typically.

* (Inovasi dan pengoperasian yang mudah, tidak perlu Software tambahan, setelah menyelesaikan proses datalogger, cukup ambil SD Card dari meteran dan colokkan kartu SD ke komputer, dapat mengunduh semua nilai yang diukur dengan informasi waktu ( tahun / bulan / tanggal / jam / menit / detik) ke Excel secara langsung, kemudian pengguna dapat membuat sendiri analisis data)
