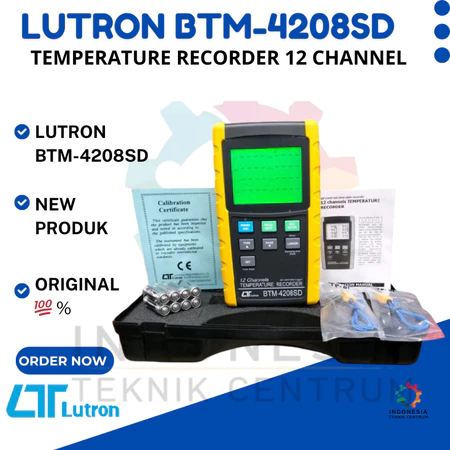

Lutron BTM-4208SD Temperature Recorder 12 Channel
SPECIFICATIONS
Sensor, Range, Resolution, Accuracy
● Type-K
-50.1 to -100.0℃,0.1℃, ±(0.4%+1℃)
-50.0 to 999.9℃, 0.1℃, ±(0.4%+0.5℃)
1000 to 1300 ℃,1℃, ±(0.4%+1℃)
-58.1 to -148.0 ℉, 0.1℉, ±(0.4 %+1.8℉)
-58.0 to 999.9 ℉, 0.1℉,± (0.4 %+1℉)
1000 to 2372 ℉, 1℉, ± (0.4%+2℉)
● Type-J
Range:
-50.1 to -100.0℃ ,0.1℃, ±(0.4 %+1℃)
-50.0 to 999.9℃, 0.1℃, ±(0.4 %+0.5℃)
1000 to 1150℃,1℃ , ±(0.4 %+1℃)
● Type T
-50.1 to -100.0 ℃,±(0.4%+1℃)
-50.0 to 400.0 ℃,±(0.4%+0.5℃)
-58.1 to -148.0 ℉, ±(0.4%+1.8℉)
-58.0 to 752.0 ℉, ±(0.4%+1℉)
● Type E
-50.1 to -100.0 ℃, ±(0.4%+1℃)
-50.0 to 900.0 ℃, ±(0.4%+0.5℃)
-58.1 to -148.0 ℉, ±(0.4%+1.8℉)
-58.0 to 999.9 ℉, ±(0.4%+1℉)
1000 to 1652 ℉, ±(0.4%+2℉)
● Type R
0 to 600 ℃,±(0.4%+0.5℃)
601 to 1700 ℃,±(0.4 % +1℃)
32 to 1112 ℉, ±(0.4 % +1℉)
1113 to 3092℉,±(0.4 % + 2℉)
● Type S
0 to 600 ℃,±(0.4 %+0.5℃)
601 to 1500 ℃,±(0.4 %+1℃)
32 to 1112 ℉,±(0.4 %+1℉)
1113 to 2732 ℉,±(0.4%+2℉)
LUTRON BTM-4208SD , Accessories yang termasuk di alat :
● Operation Manual
● Kartu Certificate Calibration
● Type K Temp. probe, TP-01= 2 pcs
● SD Card 4GB
● Hard carrying case CA-08
● Batere AA (1,5 Volt)=8pcs
Optional Accessories ( Tidak termasuk )
● DC Adaptor AP-9VA
● Tambahan Type K Temp probe. TP-01, TP-02A. TP-03, TP-04
● Data Acquisition software, SW-E816
● USB Cable USB-01
Lutron BTM-4208SD, 12 Channel Temperature Recorder
Made in Taiwan
FEATURES
● Real time data logger, save the 12 channels Temp. measuring data along the time information
(year,month,date,minute,second) into the SD card & can be down load to the Excel, extra software is no need. User can make the further data or graphic analysis by themselves
● Sensor type :Type J / K / T / E / R / S
● Data logger sampling time range : 1 to 3600 seconds
● Page 1 show: CH1 to CH8 & page 2 show: CH9 to CH12
● Display resolution :1 °C/0.1°C
● LCD size : 82 mm x 61 mm, with green color backlight
● Dimension Meter: 225 X 125 X 64 mm
● Sampling time of display : 1 second
● Operating temp: 0 to 50 .℃
