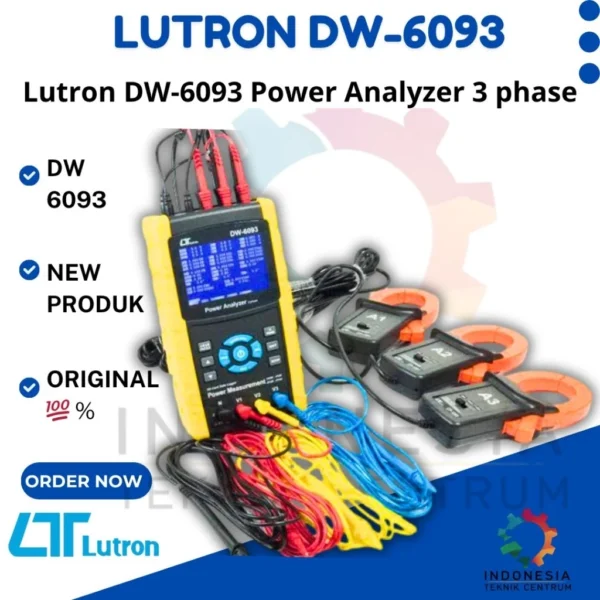

Lutron DW-6093 Power Analyzer 3 phase

3 Phase Power Analyzer ( Termasuk SD Card 4 GB )

FEATURES:

* Analysis for 3 phase multi-power system, 1P/2W, 1P/3W, 3P/3W, 3P/4W

* 3 current probes max 1200A AC (CP-1201) are included

* Current range : 0.2 to 1200 ACA –>CP-1201

* Current probe input signal/ranges with selection:

Input signal (ACV): 200 mV/300 mV/500 mV/1 V/2 V/3 V

* Meter can cooperate with other universal current probes

* Voltage & Current are the True RMS value

* True Power (KW, MW, GW)

* Apparent Power (KVA, MVA, GVA)

* Reactive Power (KVAR, MVAR, GVAR)

* Watt-Hour (WH, SH, QH, PFH)

* Power Factor (PF), Phase Angle (Degree)

* Voltage range : 10 to 600 ACV

* Programmable CT ratio (1 to 600) and PT ratio (1 to 1000)

* ACV input impedance is 10 Mega ohms

* Safety Standard : IEC 1010, CAT III 600V

* Built-in clock and Calendar, real time data record with SD memory card , sampling time can be set from 2 to 7200 seconds.

Just slot the SD card into the computer, all the measured values with the time information ( year, month, data, hour, minute, second ) can be downloaded to the Excel directly, then user can make the further data analysis by themselves.
